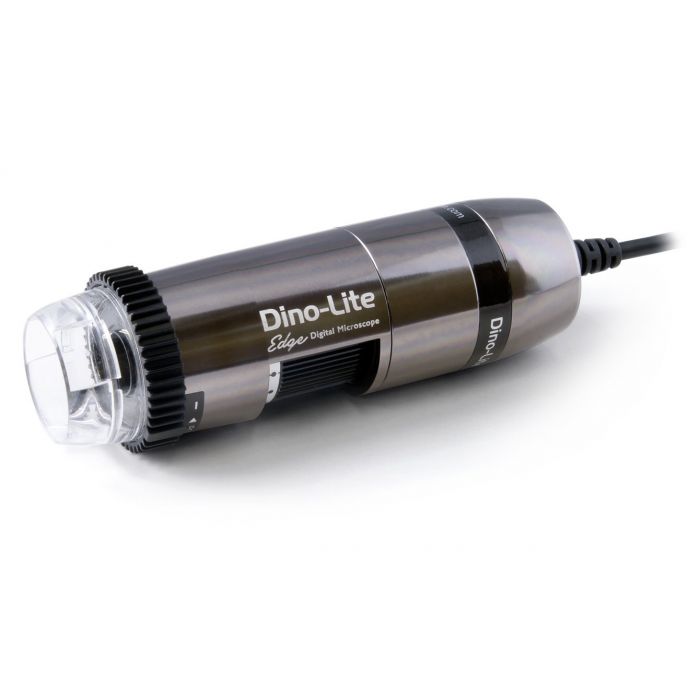

Product Information: AF7915MZTL USB Microscope

Key Features:
• Automatic Magnification Reading (AMR)
• Magnification up to 140x
• Integrated Polarization Filter
• Measurement Function with Calibration
• EDOF – Extended Depth of Field

The AF7915MZTL USB Microscope is designed for precise measurements and advanced imaging. With built-in software tools, users can accurately measure lines, angles, radii, and circles. Measurement data can be exported directly to Excel, enabling the creation of comprehensive measurement reports.

Automatic Magnification Reading (AMR) for Improved Accuracy
The AMR function automatically transmits the microscope’s magnification level to the software, enhancing precision and reducing errors. This feature supports both real-time measurements and post-capture analysis, ensuring detailed and flexible examination.

Reliable Calibration for Accurate Measurements
To guarantee measurement accuracy, the AF7915MZTL microscope includes a calibration standard for quick and automated calibration. The user-friendly software walks users through the calibration process, ensuring optimal and consistent accuracy.

Enhanced Imaging with EDOF Technology
The Extended Depth of Field (EDOF) feature allows users to capture images with greater depth and sharpness. By automatically stacking multiple focus layers into a single image, EDOF ensures clearer and more detailed imaging, making it ideal for product photography and high-precision microscopy.

Optimized Lighting with Polarization Technology
The built-in polarization filter minimizes glare and unwanted reflections, particularly when examining highly reflective surfaces. With adjustable intensity, the filter enhances contrast and clarity, ensuring detailed and accurate observations.

Interchangeable Front Caps for Versatile Applications
The AF7915MZTL microscope features an innovative front cap system, enabling operation without a front cap for unobstructed viewing.

The included front caps (varies by model) can be easily attached, customizing the microscope for different applications. Additionally, diffuser attachments help modify light scattering, minimizing reflections and improving image clarity.

Durable and Portable Aluminum Housing
Crafted from high-quality aluminum, the AF7915MZTL USB Microscope is lightweight yet robust, making it ideal for mobile and multi-location use.

Looking for the perfect Dino-Lite microscope? Reach out to us via the contact form below—we’re happy to help!

Enhance your setup with a compatible Dino-Lite stand for maximum precision and stability.

Technical Specifications:
• Brand: Dino-Lite
• Model Number: AF7915MZTL
• Working Distance: Long
• Resolution: [Megapixel - To be determined]
• Magnification Range: 10x – 140x
• FLC – Flexible Light Control
• Connection Type: USB 2.0
• Material: Aluminum casing
• EDOF – Extended Depth of Field
• Automatic Magnification Reading (AMR)
• Measurement Function with Calibration
• Integrated Polarization Filter
• Interchangeable Front Caps

What Are Dino-Lite Microscopes?
Dino-Lite USB microscopes are a versatile range of high-performance digital microscopes that connect to Windows and Mac computers via USB. Some models also offer wireless connectivity, enabling direct transmission to Android smartphones.

The advanced software simplifies surface and component measurements, allowing users to export results directly to Excel. Additionally, images can be saved in multiple formats for further processing.

With up to 8-megapixel resolution, even minute details are captured with exceptional clarity. The high-performance chipset ensures superior color accuracy and image quality. Depending on the model, magnification levels of up to 900x are possible, with typical applications ranging from 50x to 230x magnification.

Dino-Lite microscopes offer various advanced features, making them a top choice for industrial, scientific, and professional applications.

Our Recommendation:
For optimal precision and enhanced stability, we recommend pairing this microscope with the Dino-Lite RK-10 stand, ensuring accurate positioning for laboratory and industrial applications.
