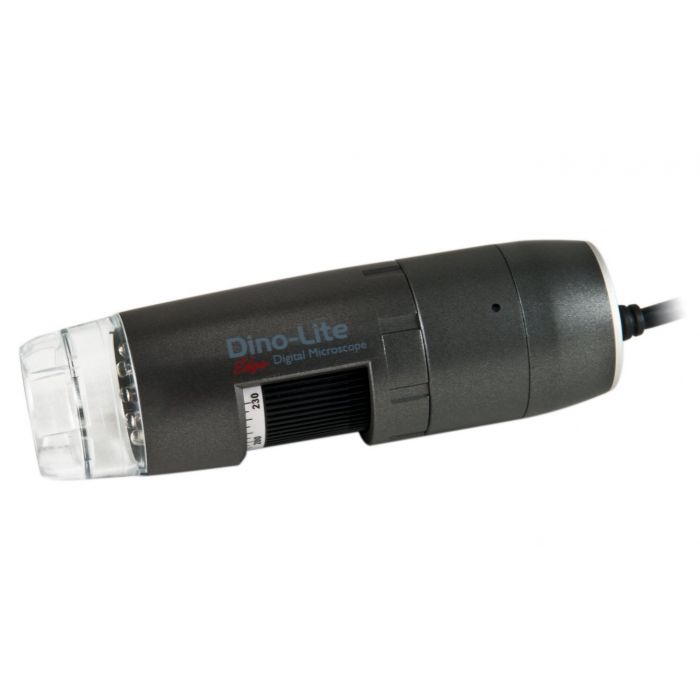

Product Information: AM4115T-FUW USB Microscope

Key Features:
• 1.3 Megapixel resolution
• Up to 220x magnification
• Measurement function with calibration
• FLC – Flexible Light Control
• UV and white LED illumination

Overview:
The AM4115T-FUW USB microscope is a high-precision tool designed for accurate measurements and detailed imaging. Its integrated measurement function allows users to determine lines, angles, radii, and circles with ease. Measurement data and images can be exported directly to Excel, streamlining documentation and analysis.

For precise and repeatable measurements, the included calibration standard and intuitive software make the calibration process quick and straightforward. The DinoCapture software guides users through the necessary steps, ensuring accurate and reliable calibration.

Advanced Lighting Control (FLC – Flexible Light Control)
Proper lighting is crucial in microscopy. This microscope features 8 LEDs in a ring light, which can be dimmed from 100% down to 6.25% or completely turned off. Additionally, the LEDs can be activated in pairs, allowing for directional lighting control to enhance image clarity and reduce reflections.

The innovative front cap system enables users to operate without a front cap, providing a clear and unobstructed view of the object under inspection. Various interchangeable front caps are included, allowing for customization based on the specific application. The diffuser system enhances light distribution, minimizing reflections and improving overall image quality.

Portable and Durable Design
Constructed with a robust yet lightweight plastic housing, the AM4115T-FUW is ideal for mobile use and on-site applications. Its compact and durable build ensures reliable performance across various environments.

Looking for the perfect Dino-Lite microscope? Reach out to us via the contact form below—we’re happy to help!

Technical Specifications:
• Manufacturer: Dino-Lite
• Model Number: AM4115T-FUW
• Working Distance: Standard
• Resolution: 1.3 Megapixels
• Magnification: 20x - 220x
• FLC – Flexible Light Control
• Connection: USB 2.0
• Housing Material: Plastic
• Illumination: 4 UV LEDs (375nm) and 4 white LEDs
• Measurement function with calibration
• Interchangeable front caps

What Are Dino-Lite Microscopes?
Dino-Lite USB microscopes are a versatile series of digital microscopes that connect directly to Windows and Mac computers via USB. Some models feature wireless capabilities, allowing direct image transmission to smartphones and tablets.

The DinoCapture software includes powerful measurement tools, enabling users to analyze surfaces, components, and fine details with high precision. Measurement results can be exported to Excel, while captured images can be saved in various formats for further processing and review.

With resolutions up to 8 megapixels, Dino-Lite microscopes ensure sharp and clear imaging, capturing even the smallest details with exceptional accuracy. The high-performance sensor guarantees excellent color reproduction and sharpness.

Depending on the model, magnifications of up to 900x are available, though most practical applications typically require magnifications between 50x and 230x. Various specialized features further enhance the usability and versatility of the Dino-Lite microscope range.

Our Recommendation:
For optimal performance, we recommend using this microscope with the RK-06 stand, ensuring stability and precision for detailed microscopy applications.
