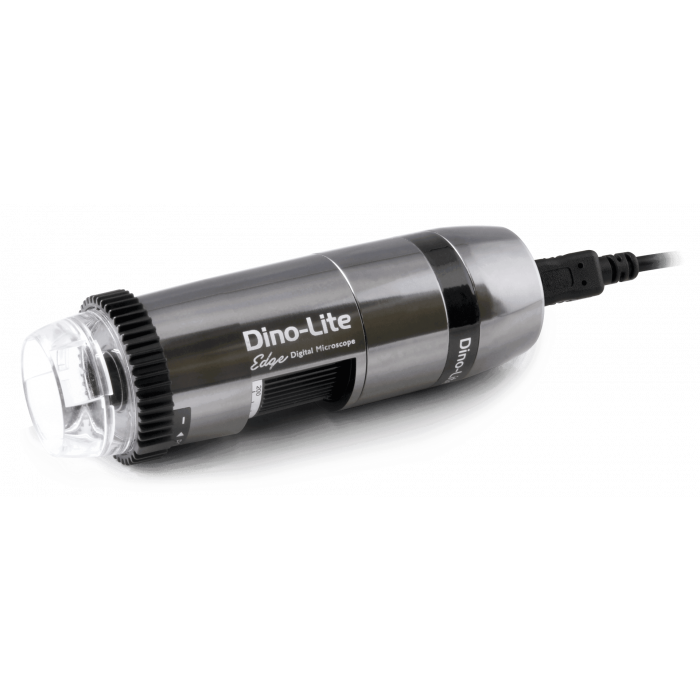

Product Information: AM4917MZT4 USB Microscope

Key Features:
• Precision Measurement & Calibration
• Polarization Filter for glare reduction
• FLC (Flexible Light Control) Technology for adjustable lighting
• EDOF (Extended Depth of Field) Functionality
• High-Resolution Imaging
• Advanced Measurement and Calibration

The AM4917MZT4 USB Microscope is an essential tool for high-precision measurements, allowing users to analyze lines, angles, radii, and circular dimensions with ease. Its user-friendly software enables measurements to be performed in real-time or on saved images, with direct Excel export capabilities for streamlined data reporting.

To ensure measurement accuracy, the microscope features automatic magnification detection, minimizing errors and improving reliability. The included calibration standard and DinoCapture software provide a guided step-by-step calibration process for optimal results.

Extended Depth of Field (EDOF) for Enhanced Imaging
EDOF technology combines multiple images at different focal depths to produce a single image with greater depth of field. This feature is especially beneficial for aerospace applications, where highly detailed imaging of aircraft components is crucial for inspection and quality control.

Optimized Illumination with FLC & Polarization Filter
8 White LEDs integrated into a ring light system
FLC (Flexible Light Control): Enables precise dimming or deactivation of LEDs
Directional LED Pair Switching for customized lighting angles
Polarization Filter: Effectively reduces glare and reflections, crucial for inspecting highly reflective surfaces
User-Friendly Design & Adaptability
Capless Operation: Allows for unobstructed observation
Interchangeable Front Caps: Easily attachable for different applications
Diffuser Technology: Enhances light distribution to minimize glare and improve image clarity
Durable Aluminum Construction for Versatile Use
Encased in premium aluminum, the AM4917MZT4 ensures robust durability and lightweight handling, making it suitable for both laboratory and on-site applications.

Looking for the perfect Dino-Lite microscope? Reach out to us via the contact form below—we’re happy to help!

Technical Specifications
• Manufacturer: Dino-Lite
• Model Number: AM4917MZT4
• Working Distance: Standard
• Resolution: Megapixel
• Magnification Range: 400x – 470x
• Lighting System: 8 White LEDs with Flexible Light Control (FLC)
• Connection Type: USB 2.0
• Material: Aluminum housing
Features:
• Extended Depth of Field (EDOF) for enhanced imaging
• Measurement & Calibration Functions
• Polarization Filter for glare reduction
• Interchangeable Front Caps

What Are Dino-Lite Microscopes?
Dino-Lite digital microscopes provide high-resolution imaging and measurement capabilities for scientific research, industrial inspections, and precision engineering.

USB connectivity for Windows & Mac
Wireless models available for smartphone integration
Software enables rapid surface analysis and component measurement
One-click Excel export for efficient documentation
Supports multiple image formats for flexible data management
High-resolution imaging up to 8 megapixels for detailed visuals
Magnification capabilities up to 900x, depending on the model

Recommended Accessories:
To achieve optimal stability and precision, we recommend pairing the microscope with:
Dino-Lite RK-10 Stand for fine adjustments and improved stability
XY Cross Table for precise sample positioning
Multifunctional V-Profile for advanced microscopy applications
