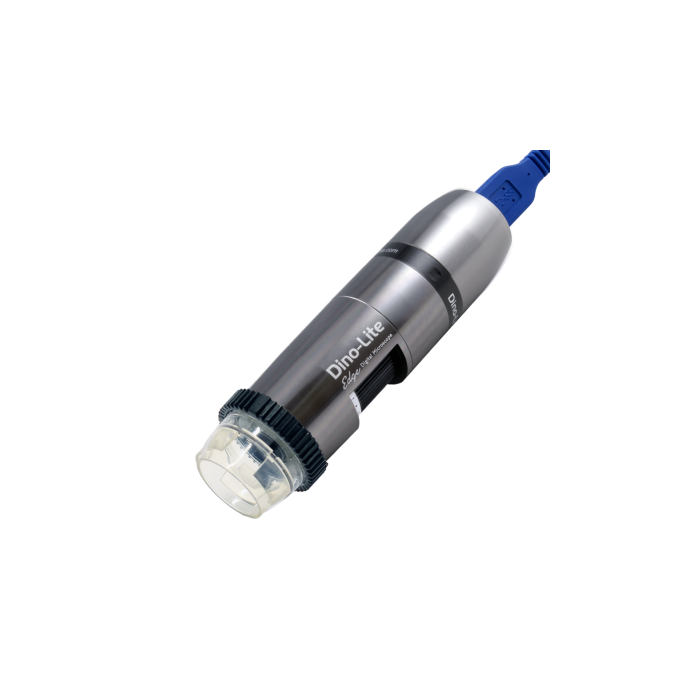

Product Information: AM73915MT8 USB Microscope

Key Features:
• 5 Megapixel Resolution
• Up to 900x Magnification
• eFLC (Enhanced Flexible Light Control)
• EDOF (Extended Depth of Field)
• Automatic Magnification Readout (AMR)
• Measurement Function and Calibration
• Quick and Easy Measurements

The AM73915MT8 USB Microscope allows for quick and precise measurements through its software. You can measure lines, angles, radii, and circles. The measurement results and corresponding image can be easily exported to Excel, streamlining the creation of a detailed measurement report.

Automatic Magnification Readout (AMR)
Thanks to the AMR feature, the magnification of the microscope is automatically transferred into the software. This function increases measurement accuracy and minimizes errors. You can perform measurements both on live images and saved images, giving you the flexibility to analyze your samples at any time.

Precise Calibration
For accurate and reliable measurements, calibration is essential. The microscope includes a calibration standard, and the intuitive software makes the calibration process quick and easy. The software guides you through the necessary steps to ensure precise calibration for the best results.

Extended Depth of Field (EDOF)
The EDOF feature is especially useful in fields like aerospace, where it provides sharper images of parts like aircraft and spacecraft components. This feature enhances safety and efficiency in industries requiring precise visual analysis.

Polarization Filter for Optimal Lighting
The polarization filter is an essential tool in microscopy for reducing unwanted light reflections, especially on reflective surfaces. Its adjustable settings help minimize reflections and provide more accurate results.

Front Cap System for Clearer Views
The AM73915MT8 microscope is equipped with a front cap system, allowing you to work without the front cap for an unobstructed view of the specimen. Various front caps are included (depending on the model), which can be easily attached for optimal performance. The use of diffusers allows for better light distribution, reducing light reflections and improving image quality.

Sturdy and Lightweight Design
The AM73915MT8 is built with a durable aluminum housing, combining stability and lightness, making it ideal for mobile use and various applications.

Looking for the perfect Dino-Lite microscope? Reach out to us via the contact form below—we’re happy to help!

Product Specifications:
• Manufacturer: Dino-Lite
• Product Number: AM73915MT8
• Working Distance: Standard
• Resolution: 5 Megapixels
• Magnification: 700x-900x
• Connection: USB 2
• Housing Material: Aluminum
• Lighting: White / 8 LEDs
• Measurement Function and Calibration
• Polarization Filter
• Interchangeable Front Caps
• eFLC - Enhanced Flexible Light Control

What Are Dino-Lite Microscopes?
Dino-Lite Microscopes are a series of various models that connect to Windows or Mac computers via USB. The Wireless Series allows for direct smartphone connections as well. The included software enables quick measurements of surfaces and components, and results can be directly transferred to Excel. Images can also be exported in almost any image format for further processing.

Up to 8 Megapixels for clear, detailed images
Excellent color and image reproduction with the built-in chipset
Up to 900x magnification, with typical applications ranging from 50x to 230x magnification

Our Recommendation:
Combine this microscope with the RK-06 Stand for excellent fine adjustment. This is an excellent choice for achieving optimal microscopy results.
