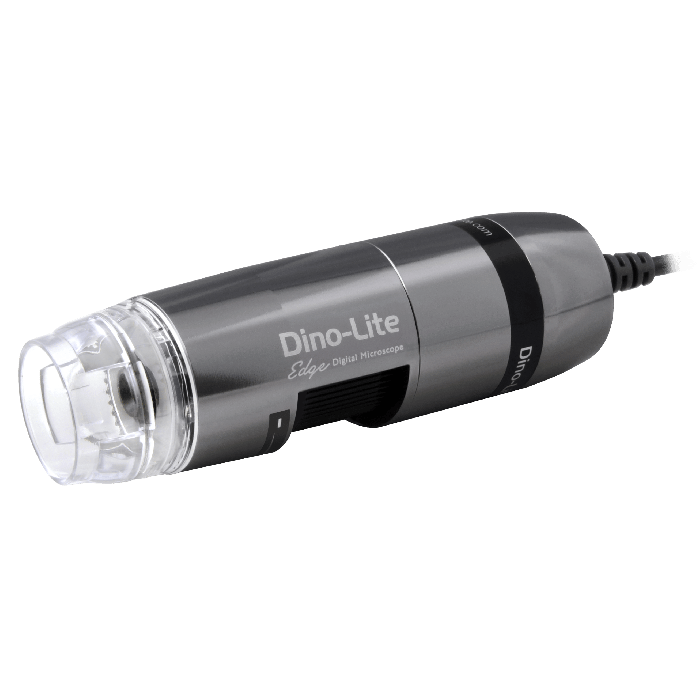

Product Information: AM7515MT4A USB Microscope

Key Features:
• Up to 470x Magnification
• 5 Megapixel Resolution
• Flexible Light Control (FLC)
• Measurement Function & Calibration
• Accurate and Easy Measurements

The AM7515MT4A USB Microscope enables precise measurements that can be quickly and easily performed via the included software. You can measure lines, angles, radii, and circles. The measurement results and the corresponding image can be exported to Excel with just a click, facilitating the creation of a comprehensive measurement report.

Simple Calibration
For precise and reliable measurements, calibration is essential. With the provided calibration standard and the easy-to-use software, the calibration process is quick and straightforward. The software guides you through each step, ensuring a reliable calibration.

Flexible and Precise Lighting
Lighting plays a critical role in achieving high-quality images in microscopy. The AM7515MT4A features a ring light with eight white LEDs that can be individually dimmed or completely turned off using FLC technology. The ability to turn the LEDs on and off in pairs provides additional options to optimize the lighting for different samples. The microscope also includes an advanced front cap system that allows you to work without the front cap, providing an unobstructed view of the sample. Interchangeable front caps are provided (which may vary by model) and can be easily mounted to ensure optimal adjustment for various applications. Using the diffuser results in a unique light scattering effect that reduces light reflections, improving image quality.

Durable and Portable Design
The AM7515MT4A is made from high-quality aluminum, which ensures both robustness and lightness, making it ideal for transport and use in various locations.

Looking for the perfect Dino-Lite microscope? Reach out to us via the contact form below—we’re happy to help!

Product Specifications:
• Manufacturer: Dino-Lite
• Product Number: AM7515MT4A
• Working Distance: Standard
• Resolution: 5 Megapixels
• Magnification: 400x - 470x
• Connection: USB 2
• Housing Material: Aluminum
• Lighting: White / 8 LEDs
• Measurement Function & Calibration
• Interchangeable Front Caps

What Are Dino-Lite Microscopes?
Dino-Lite USB Hand Microscopes are a series of microscopes that can easily connect to a Windows PC or Mac via USB. There are also wireless models available, which transmit the signal directly to a smartphone. The included software allows for quick measurement of surfaces and components. Results can be exported directly to Excel, and images can be exported and processed in nearly any format. With up to 8 Megapixels resolution, even the smallest details are clearly visible. The built-in chipset ensures excellent color and image reproduction. Depending on the model, Dino-Lite microscopes can achieve up to 900x magnification, with typical usage ranging from 50x to 230x magnification.

Our Recommendation:
We recommend pairing this microscope with the RK-06 Stand with Fine Adjustment for optimal performance and precision in your lab setup.
