Tech-Line Precision Duo Scale+

Fast and easy to install thanks to a clever guided installation system.

Sturdy, scratch-resistant hard-glass disks are used for the high-quality, ultra-modern Tech-Line Duo-Scales. During the development and manufacture of these scales nothing has been left to chance!

The duo-scales are, as its name states, two scales in one. You can find the common visible macro scale (Ø25 mm) as well as a micro scale (Ø2.5 mm) in the bottom half of the disk. Based in a black plastic ring, the scale floats/hovers over the object which prevents scratches.

The scaling, which is made out of hard-chrome, has purposely been applied on the underside of the hard-glass disks to prevent parallax error.

Summary

High Professional Product Made in Germany

Five Scales to Choose from:

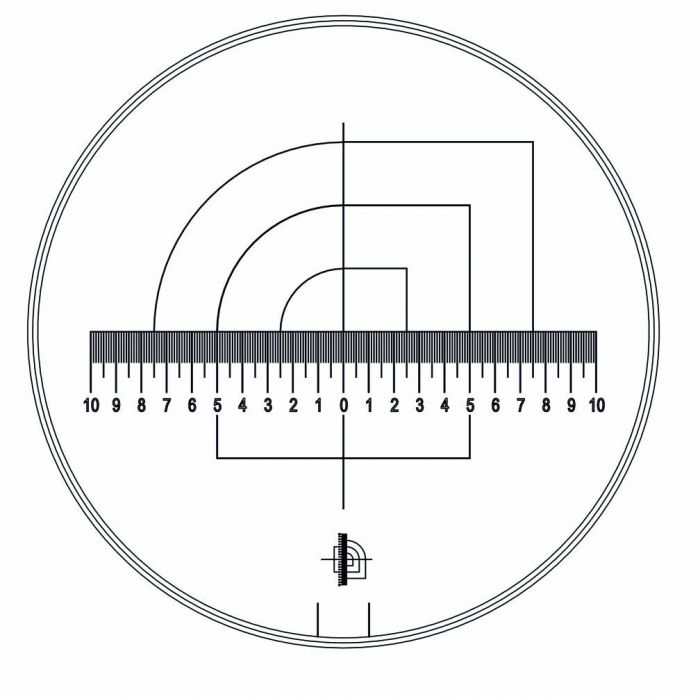

• Scale 1 - Standard, Product No.: 97001
• Scale 2 - Multi, Product No.: 97002
• Scale 3 - Angle , Product No.: 97003
• Scale 4 - Grid, Product No.: 97004
• Scale 5 - Width, Product No.: 97005

More details on each scale are to follow and until then can be provided on request.

About Tech-Line

Tech-Line is synonymous with technically sophisticated products which meet the requirements for high-quality optics, ergonomic handling and sturdy materials which are suitable for daily use. The Tech-Line Series has been professionally adapted for the demanding requirements & conditions of any work environment.

Discover the variety

By developing the Tech-Line series, SCHWEIZER created an ultra-modern magnifier generation, which combines the following features.

• High quality, aplanatic silicate glass optics. In the low magnification range, biconvex optics / bifocals are used.
• The silicate-glass optics used in Schweizers Tech-Line magnifiers are 100% manufactured in Germany. Not only do they contain the best optical features, they are also very scratch-resistant! (especially in comparison with plastic lenses).
• All magnifiers with a silver coating are coated with a special 2-component-coating: Resistant to hand perspiration. Resistant to nearly all solvents/chemicals. Very hard and plane surface, scratch-resistant and easy to clean.
• Schweizer uses environmentally-friendly, energy-saving and extremely long-life high-performance LEDs
