Specwell Monocular [8x30] + Microscope [25x or 40x] Stand+

.

In stock

Grouped product items

    • The monocular is delivered with a stand and a close-up lens already attached to it. By screwing the close-up lens on the monocular, you get an excellent microscope.
    • Monoculars are used as positioning aids in the industry, among other uses. However, if the working distances without close-up lens are too big or if the magnification is not as high as necessary, then the close-up lens can be screwed on the monocular without the acrylic stand. The microscope’s fields of vision, magnifications and working distances will thus be achieved.
    • These monoculars are not only used in technology fields in combination with a close-up lens. Because of their extremely high light intensity, true-sided image and magnifications, these monoculars can also be used as visual aids.
    • The monocular lens system (ocular and objective) is achromatic (no chromatic aberration) and is antireflex coated.
    • The image is true-sided.
    • The monocular can be focused.
    Delivery includes: monocular with lens screwed to acrylic stand, high-quality box and strap.

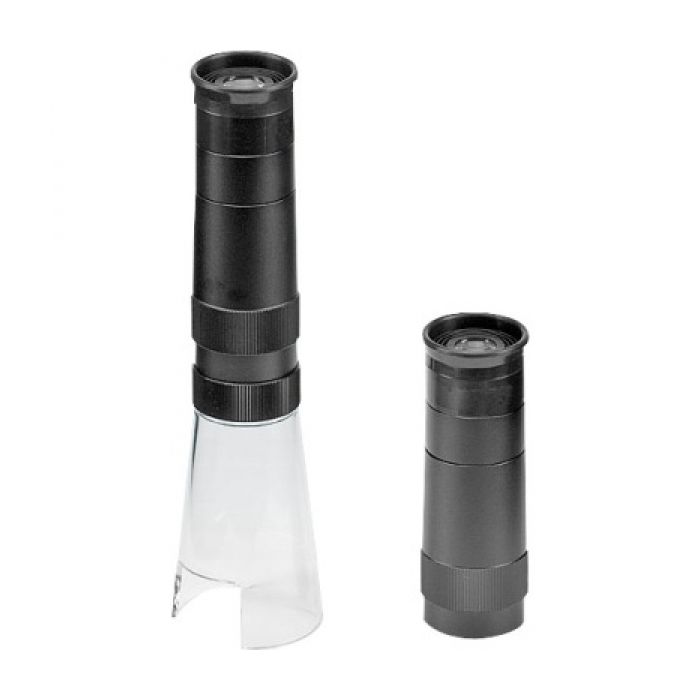

      Monocular with long stand Monocular with short stand
    Magnification monocular without stand 8x 8x
    Magnification monocular, distance 300mm 13,5x 13,5x
    Magnification monocular with stand 25x 40x
    Working distance monocular (min.) 600mm 600mm
    Working distance microscope (min.) 66mm 66mm
    Visual field monocular, distance 1.000m
         		 149m 149m
    Visual field monocular, distance 600mm
         		 72mm 72mm
    Visual field with close-up lens 12mm 8mm
    Dimensions monocular without stand 130x42mm 130x42mm
    Dimensions monocular with stand 228x45mm 228x45mm
    Weight monocular without stand 170g 76g
    Weight monocular with stand
         		 228g 228g
    Objective aperture 30mm 30mm
    Visual angle 8.5° 8.5°
    Relative brightness 14 14
    Pupil diameter 3.75mm 3.75mm
    SKU 4225155 4240151K
    Weight 0.450000 -
    Manufacturer Specwell Specwell
    Magnification 25x 40x
    Lens Type Monocular Monocular
    Lens Material glass glass
