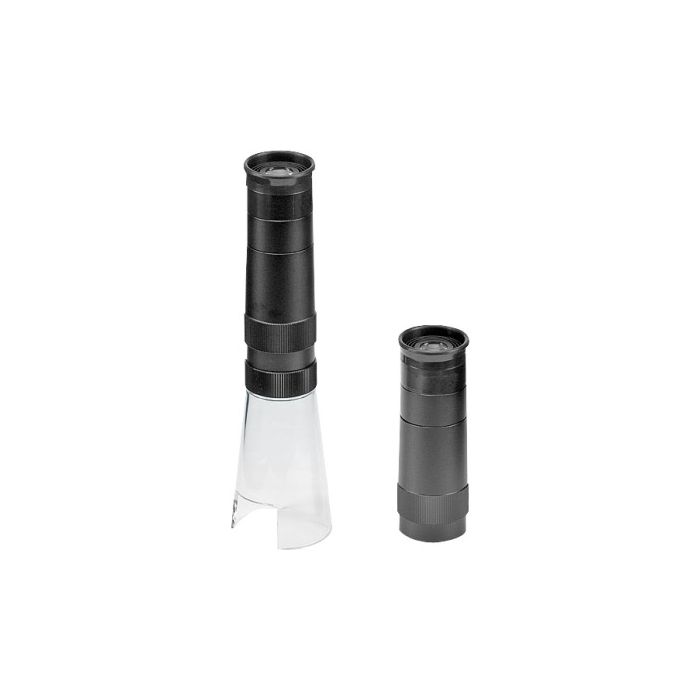

Specwell Monocular [8x20] + Microscope [25x] Stand - with Scale

Magnification: 25x

In stock

SKU 4225154
    • The monocular is delivered with a stand and a close-up lens already attached to it. By screwing the close-up lens on the monocular, you get an excellent microscope.
    • Monoculars are used as positioning aids in the industry, among other uses. However, if the working distances without close-up lens are too big or if the magnification is not as high as necessary, then the close-up lens can be screwed on the monocular without the acrylic stand. The microscope’s fields of vision, magnifications and working distances will thus be achieved.
    • These monoculars are not only used in technology fields in combination with a close-up lens. Because of their extremely high light intensity, true-sided image and magnifications, these monoculars can also be used as visual aids.
    • The monocular lens system (ocular and objective) is achromatic (no chromatic aberration) and is antireflex coated.
    • The image is true-sided.
    • The monocular can be focused.
    Delivery includes: monocular with lens screwed to acrylic stand, high-quality box and strap.
      Monocular
    with long stand
    Magnification monocular without stand 8x
    Magnification monocular, distance 300mm 17.5x
    Magnification monocular with stand 25x
    Working distance monocular (min.) 300mm
    Working distance microscope (min.) 70mm
    Visual field monocular, distance 1.000m 113m
    Visual field monocular, distance 220mm 25mm
    Visual field with close-up lens 9mm
    Dimensions monocular without stand 91x32mm
    Dimensions monocular with stand 172x45mm
    Weight monocular without stand 76g
    Weight monocular with stand 110g
    Objective aperture 20mm
    Visual angle 7°
    Relative brightness 6.2
    Pupil diameter 2.5mm
    SKU 4225154
    Weight 0.270000
    Manufacturer Specwell
    Magnification 25x
    Lens Type Monocular
    Lens Material glass
    Lens Shape round
