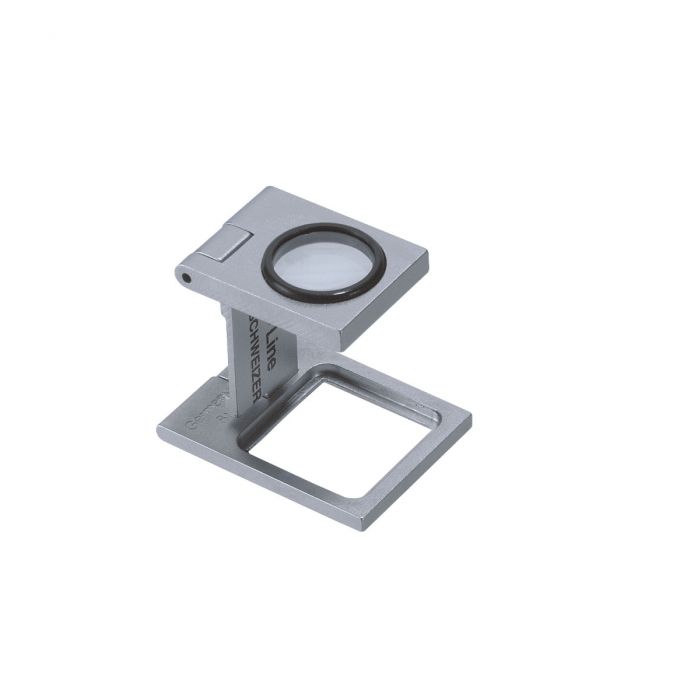

Tech-Line Linen Tester Aplanatic+

World Class Optics Made in Germany

Available Magnifications: 8x

Two clear advantages for daily use: aplanatic optics (distortion free viewing) combined with a sturdy housing made of chrome-plated brass. You can optionally purchase this linen tester version with a scale (see "Spec" for details).

Features

Equipped with an aplanatic lens system, the Tech-Line linen tester fulfills the highest optical requirements. The optics are made of silicate glass, which is very scratch-resistant, has a very high sharpness and produces an extremely high contrast image- Schweizer uses a UV absorbent optical crown as used with prescription lenses (refractive index n=1.52)

The base is shock-resistant and has a low-reflection surface. The housing is made of chrome-plated brass. Linen tester 1408011 (no picture) contains a scale embedded in low reflection glass in the base floor (10mm; 1mm) and this can be added below in options.

Specifications

Summary

High Professional Product Made in Germany

magnification: 8x, 1408011

• aplanatic glass lens (silicate glass)
• lens diameter: Ø 16 mm
• open window/foot: Ø 18 mm
• scale 10 mm / 1mm
• frame material: chrome plated brass

dimensions:

• height 3.4 cm
• width 2.7 cm
• length 3.6 cm
• weight 38 grams
• leather pouch optional
• Made in Germany

magnification: 8x, 1408012

• aplanatic glass lens (silicate glass)
• lens diameter: Ø 16 mm
• open window/foot: 20x20 mm

dimensions:

• height 3.4 cm
• width 2.7 cm
• length 3.6 cm
• weight 38 grams
• leather pouch optional
• Made in Germany

About Tech-Line

Tech-Line is synonymous with technically sophisticated products which meet the requirements for high-quality optics, ergonomic handling and sturdy materials which are suitable for daily use. The Tech-Line Series has been professionally adapted for the demanding requirements & conditions of any work environment.

Discover the variety

By developing the Tech-Line series, SCHWEIZER created an ultra-modern magnifier generation, which combines the following features.

• High quality, aplanatic silicate glass optics. In the low magnification range, biconvex optics / bifocals are used.
• The silicate-glass optics used in Schweizers Tech-Line magnifiers are 100% manufactured in Germany. Not only do they contain the best optical features, they are also very scratch-resistant! (especially in comparison with plastic lenses).
• All magnifiers with a silver coating are coated with a special 2-component-coating: Resistant to hand perspiration. Resistant to nearly all solvents/chemicals. Very hard and plane surface, scratch-resistant and easy to clean.
• Schweizer uses environmentally-friendly, energy-saving and extremely long-life high-performance LEDs
