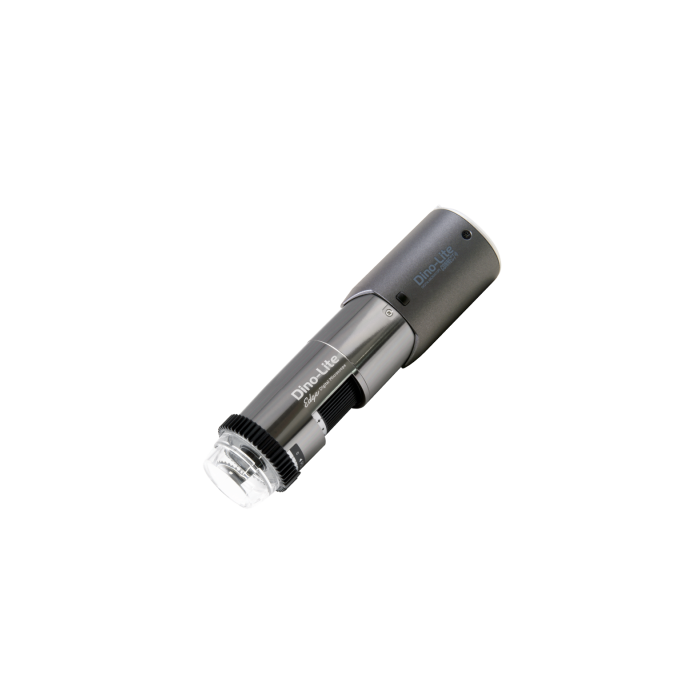

Product Information: WF7515MZTL USB Microscope

Key Features:
• 5 Megapixel Resolution
• Up to 140x Magnification
• Polarization Filter
• Automatic Magnification Reading (AMR)
• Measurement Function & Calibration
• Flexible Light Control (FLC)
• Measurement and Calibration

The WF7515MZTL USB Microscope allows precise measurements using the software. You can quickly measure lines, angles, radii, and circles. The results, along with the corresponding image, can be exported to Excel with just a click, facilitating the creation of a detailed measurement report.

With the AMR (Automatic Magnification Reading) function, the magnification is automatically transferred to the software, improving measurement accuracy and reducing errors. Measurements can be made in live images and stored images, allowing for flexible analysis.

The calibration of the microscope is essential for accurate measurements. With the included calibration standard and the easy-to-use software, calibration is simple and quick. The DinoCapture software guides you step by step through the process to ensure reliable results.

Lighting and Imaging
The microscope comes with 8 white LEDs in a ring light and allows you to control the light using Flexible Light Control (FLC). You can dim the LEDs from 100% to 6.25% or turn them off completely. Additionally, the LEDs can be toggled in pairs to allow for variable lighting from different directions.

The polarization filter helps reduce light reflections on the material, especially on reflective surfaces. It is an indispensable tool for precise analysis. The microscope also features an advanced front cap system, allowing you to work without the front cap for an unobstructed view of the sample. Various front caps are included (depending on the model) that can be easily attached to optimize performance and functionality.

Using diffusers can help scatter light, reducing reflections and improving image quality.

Durable Design
The WF7515MZTL features a high-quality aluminum housing, ensuring stability and lightweight portability, making it ideal for use in various locations and for transport.

Product Specifications:
• Manufacturer: Dino-Lite
• Product Number: WF7515MZTL
• Working Distance: Standard
• Resolution: 5 Megapixels
• Magnification: 10x - 140x
• Connection: USB 2
• Housing Material: Aluminum
• Lighting: White / 8 LEDs
• Automatic Magnification Reading (AMR)
• Measurement Function & Calibration
• Polarization Filter
• Interchangeable Front Caps
• Flexible Light Control (FLC)

What Are Dino-Lite Microscopes?
Dino-Lite USB Hand Microscopes are a series of various models that connect easily to Windows PCs or Macs via USB. There are also wireless models that transmit the signal directly to smartphones. The included software allows quick measurement of surfaces and components. Results can be exported directly to Excel, and images can be saved in various formats for further processing. With up to 8 Megapixels resolution, even the smallest details are clearly visible. The built-in chipset ensures excellent color and image reproduction. Depending on the model, you can achieve magnifications of up to 900x, with typical use between 50x and 230x magnification.

Our Recommendation:
We recommend combining this microscope with the RK-10 Stativ for fine adjustments, ensuring optimal results for your laboratory applications.
