Peak #2003 WZ3 -Linen Tester Magnifiers Aplanatic+
Magnification: 6x, 8x, 9x
In stock
-
Description
-
Details
-
Description
-
Details

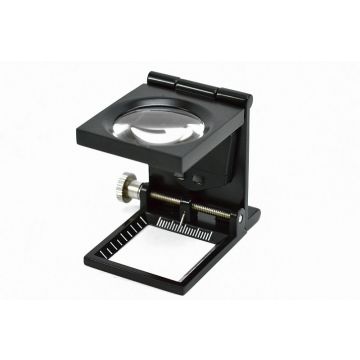

Peak Linen Tester WZ3 and WA3 series linen testers from Peak are equipped with aplanatic lenses for distortion-free magnification right up to the edge. The lens guarantees a high contrast image with maximum depth of field. The Peak 1006-WZ3 linen tester has a 25 x 25 mm visible area and 1 mm scale. The black enamel finish on the zinc metal frame prevents irritating reflections.
| Art. Nr. |
1409072 | 1408070 | 1406070 |
| PEAK Number | WZ3-1209 | WZ3-3408 | WZ3-1006 |
| Magnification | 9x | 8x | 6x |
| Lens Diameter | 19mm | 13mm | 25mm |
| Dimensions (open) LxWxH (mm) | 31x24x35 | 38x33x45 | 53x38x51 |
| Dimensions (closed) LxWxH (mm) | 35x23x10 | 44x30x12 | 48x40x12 |
| Weight | 26g | 61g | 65g |
| Base Opening (mm) | 10 x 10mm | 15x 15mm | 25 x 25mm |
| Length of scale (mm) | 10 x 10mm | 15x 15mm | 25 x 25mm |
| Division of scale (mm) | 1mm | 1mm | 1mm |
| SKU | 1409072 | 1408070 | 1406070 |
|---|---|---|---|
| Weight | 0.030000 | 0.050000 | 0.070000 |
| Manufacturer | Peak | Peak | Peak |
| Magnification | 9x | 8x | 6x |
| Lens Type | Aplanatic | Aplanatic | Aplanatic |
| Lens diameter Ø | 19mm | 13mm | 25mm |
| Lens Material | glass | glass | glass |
| Scale included | Yes | Yes | Yes |
| Scale Metric | mm | mm | mm |
| Scale Length | 10mm | 15mm | 25mm |
| Scale Graduation | 1mm | 1mm | 1mm |
| Height | 35 | 45 | 51 |
| Width | 24 | 33 | 38 |
| Length | 31 | 38 | 53 |
